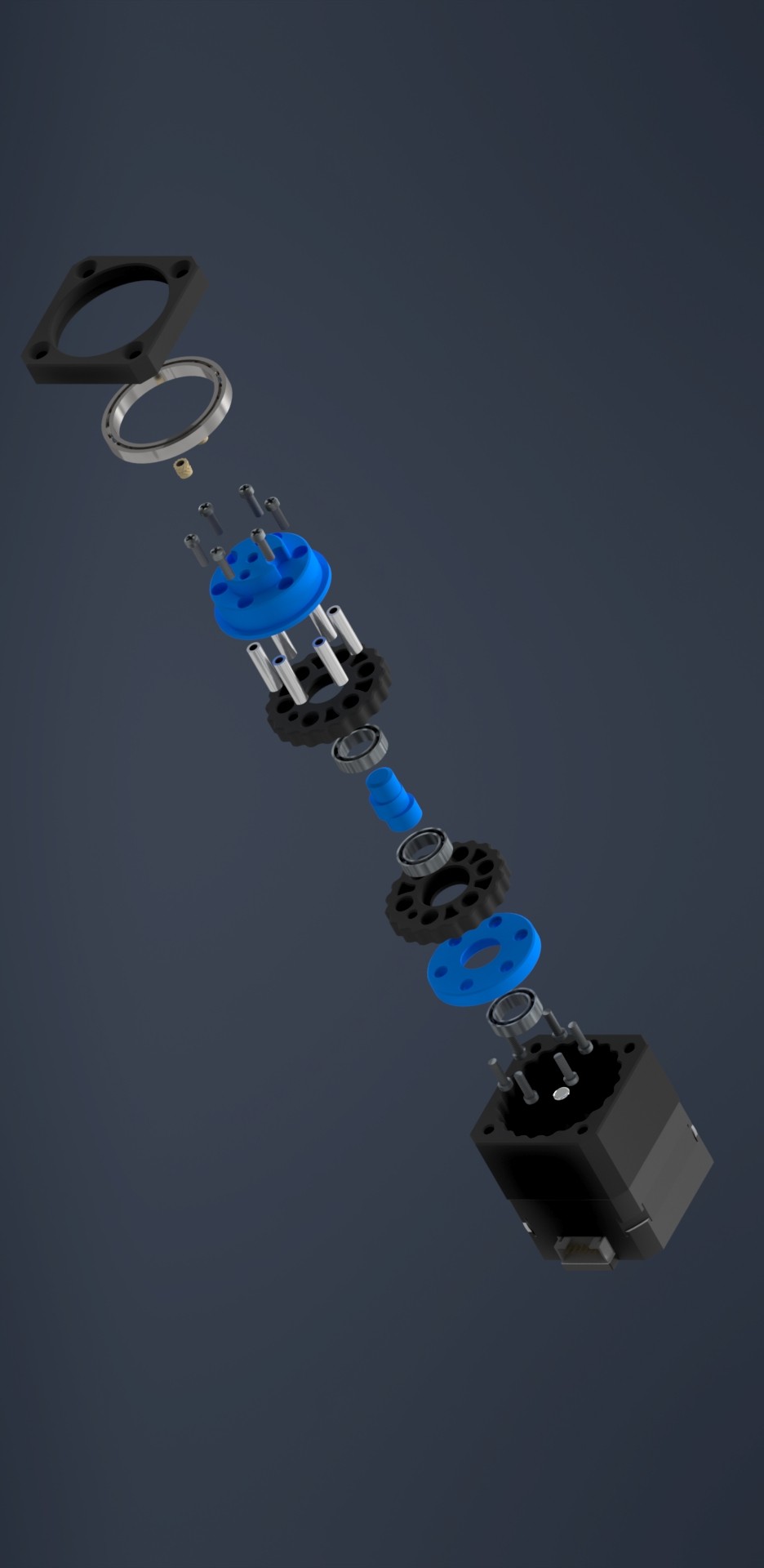

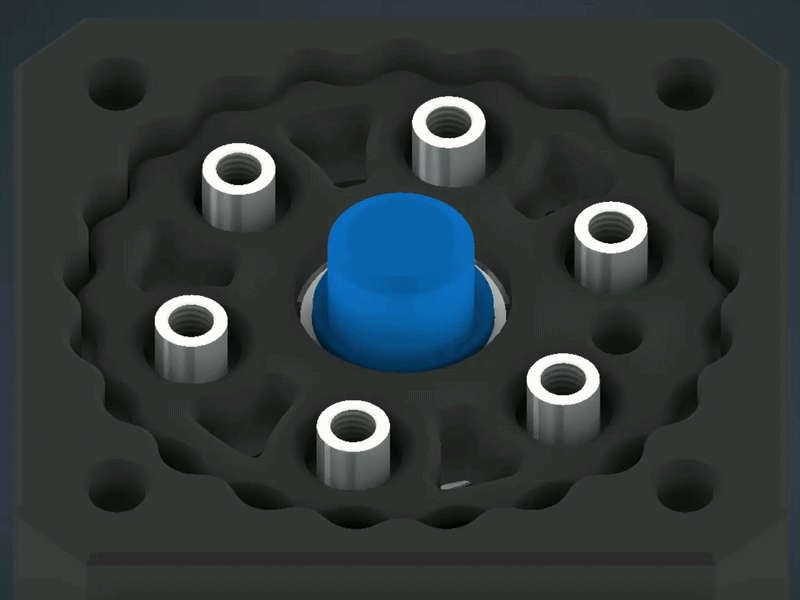

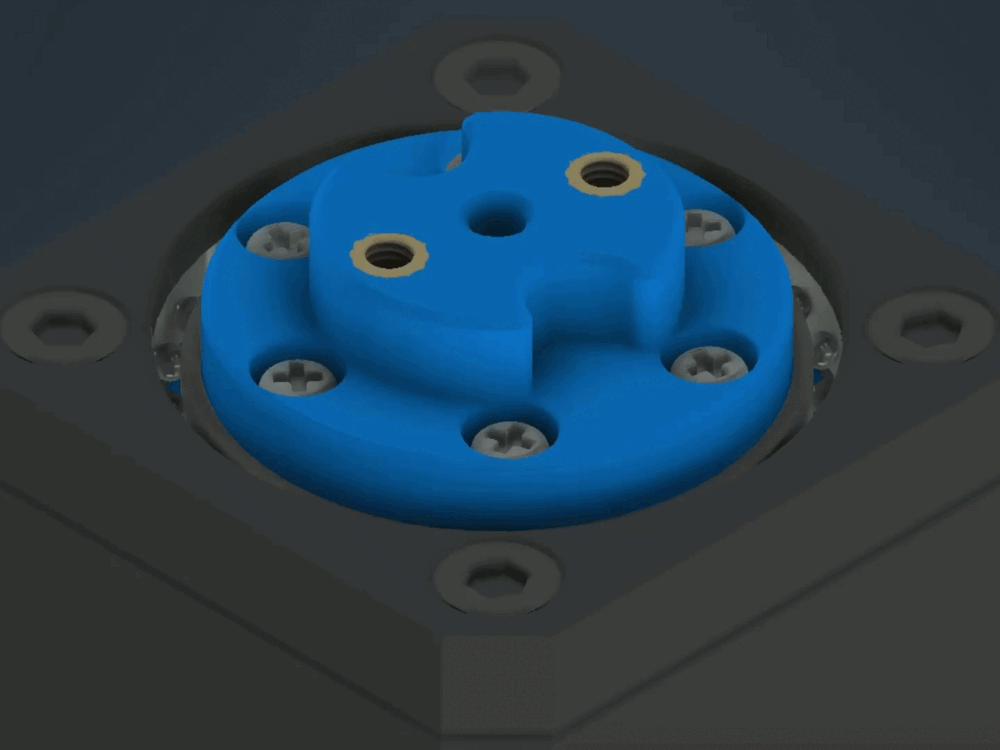

High torque meets a compact design. The CCD20 is a high-performance cycloidal reduction drive specifically engineered for standard Nema 17 stepper motors. Perfect for makers building their first robotic arms, custom actuators or more.

Important Note: This is a digital product (Download). You are purchasing the 3D design files (STL), not a physical object. As this is a high-precision mechanical assembly, final fit and performance will vary based on your 3D printer’s tolerances and material choice.

What you will receive:

High-quality STL files optimized for FDM printing.

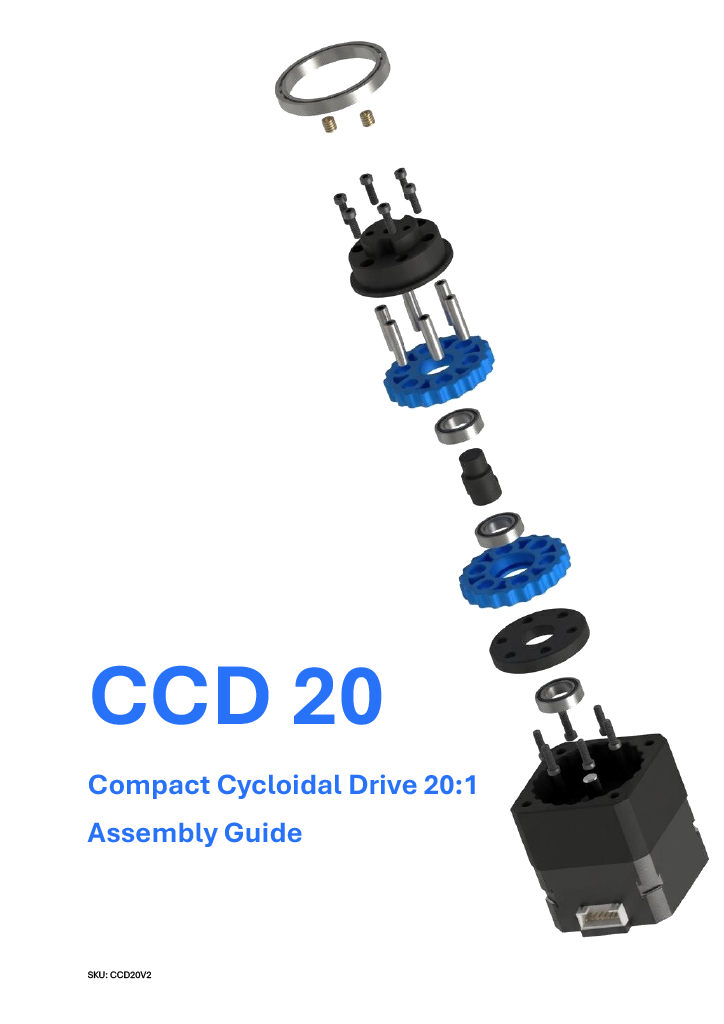

A detailed Assembly Guide (PDF) with step-by-step instructions.
A complete Bill of Materials (BOM) including links to required hardware (bearings, screws, etc.).

Requirements: To complete this project, you will need a 3D printer, filament (PETG recommended), and additional hardware parts as listed in the instructions or here.

Digital Sales Policy: Due to the nature of digital downloads, all sales are final. By purchasing this product, you agree that we cannot offer refunds or cancellations once the files have been accessed.

Dimensions	42.3×42.3×22.8mm
Ratio	20:1

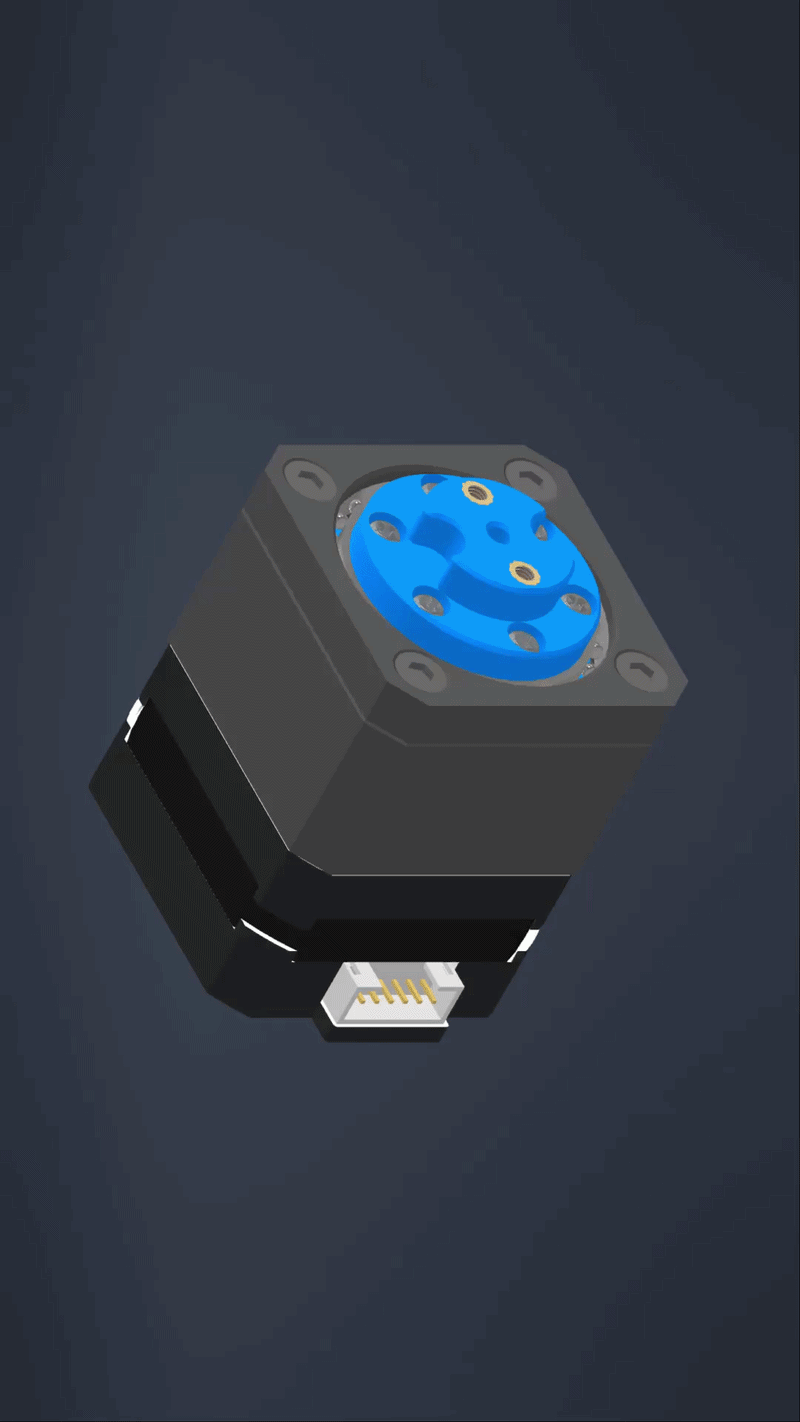

Compatible with	Standard NEMA 17 Stepper Motors (42.3)
Design Goals	High torque density & durability for 3D printed assemblies
